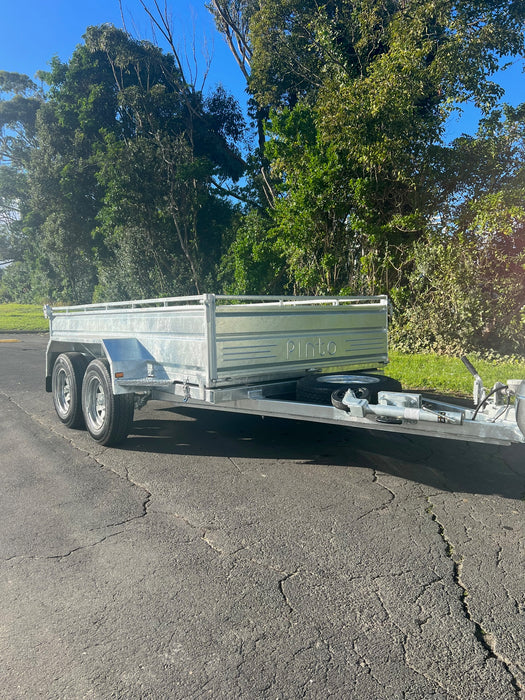

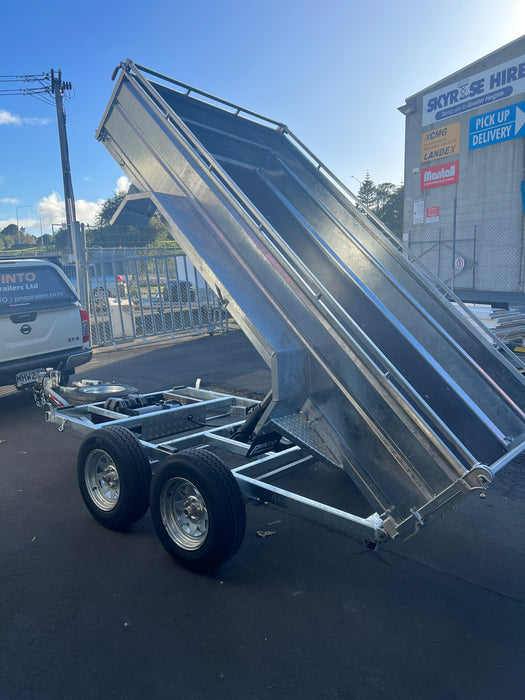

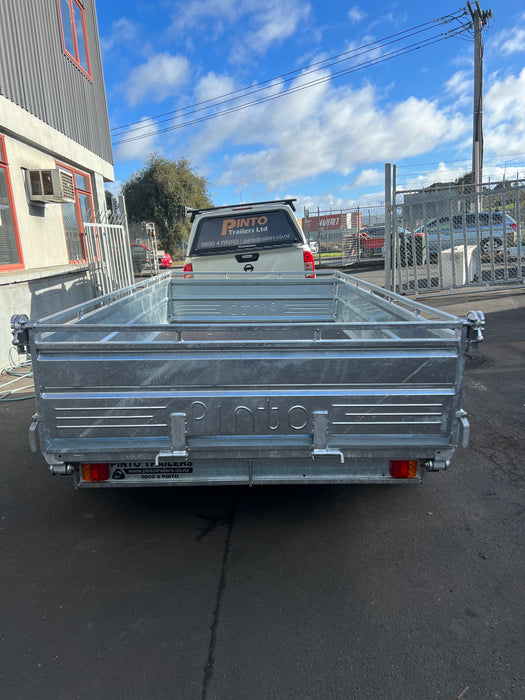

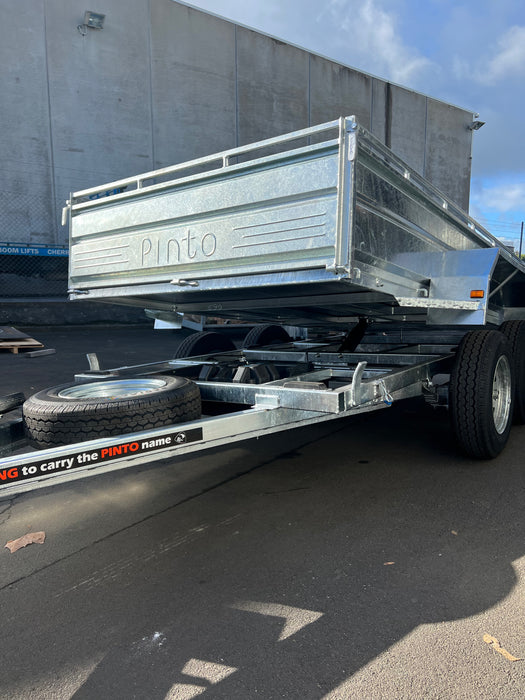

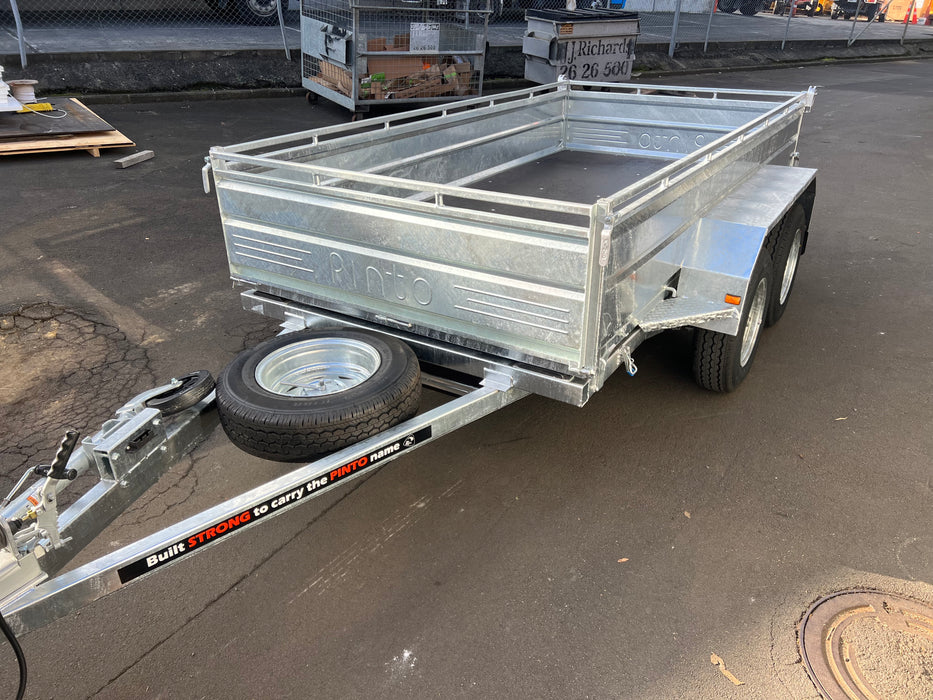

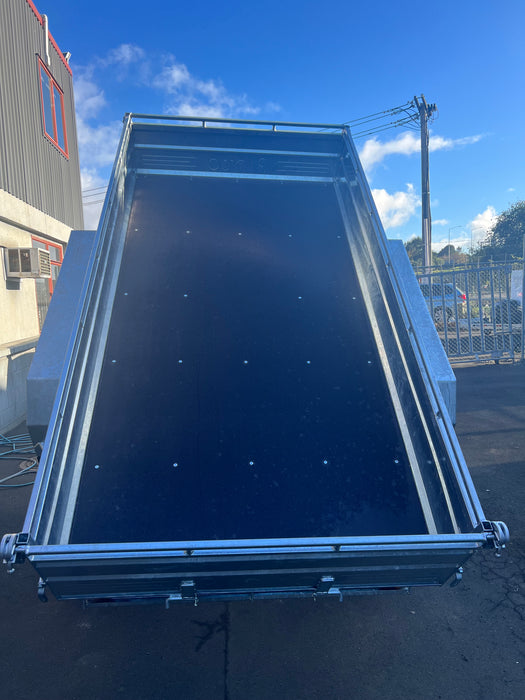

Tandem Braked Hydraulic Tipper Trailer
Our Tandem Axle Tipper Trailers are built tough to handle any load or job. With a powerful 3500kg rated, 3 stage hydraulic ram powered by a 12V battery, conveniently operated by either a wireless bluetooth remote or the wired in controller this system offers all the advantaged of a tip truck without the cost. Built in battery charge ports, just connect your charger for a full charge or top up. Takes are standard cages and crates, H bars and other accessories.
The tipper function is available across our range, sides can be the deep sides or our standard braked tandem sides. Also talk to us about the option of a tipper excavator trailer or flat deck trailer!
Our tipper trailers are fully welded RHS and hot dipped galvanised chassis, load sharing oscillating suspension, 12V Hydraulic power pack 3 stage ram with wired and wireless remote, multi-fit hydraulic over-ride coupling (spring dampened) 14" galvanised rims with marine sealed hubs and bearings, full Top Tie rail and Various Tie hooks around the base of the trailer, 2-way swing tailgate, Trans-Tex 220 Laminated Birch truck deck which has a Man-made anti-slip surface, mud flaps, spare wheel mount, folded guards (strong enough to stand on), LED lights (Protected in a recessed light channel no wider than the deck for easy maneuverability).
Available in both 2500kg GVM or 3500kg GVM with the option of European style braking system or hydraulic disc brake override braking system.
*GVM (Gross Vehicle Mass)
(ORC & Jockey Wheel Included)
**some photos shown may have accessories fitted and are optional extras, common accessories include jockey wheel, on road costs, spare wheel and cages.
Proudly NZ Made
Built In New Zealand for Kiwi conditions.
strong, reliable and made to last
Specifications
- Gross Vehicle Mass GVM (kg): 2500 or 3500
- Tare Weight (kg): 650 (10x5 2500kg GVM)
- Payload (kg): 1850 (10x5 2500kg GVM)

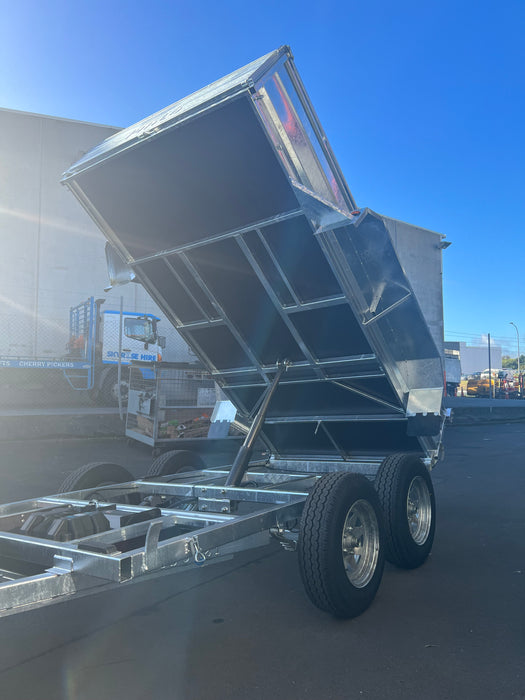

- 45 degree tip angle
- 400mm deep sides (other options available)

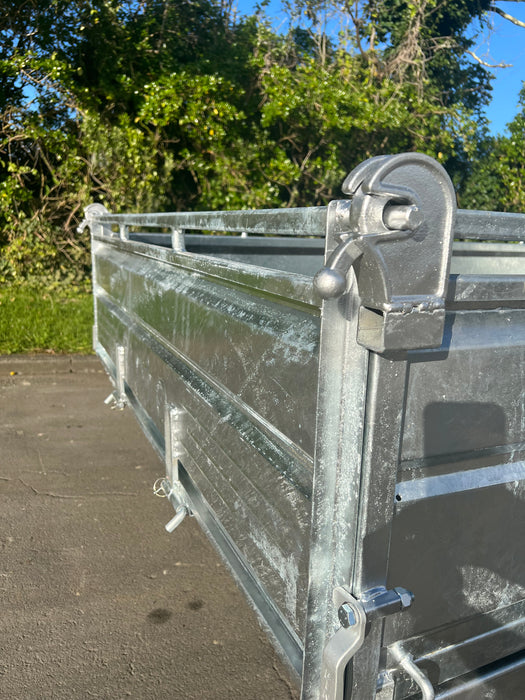

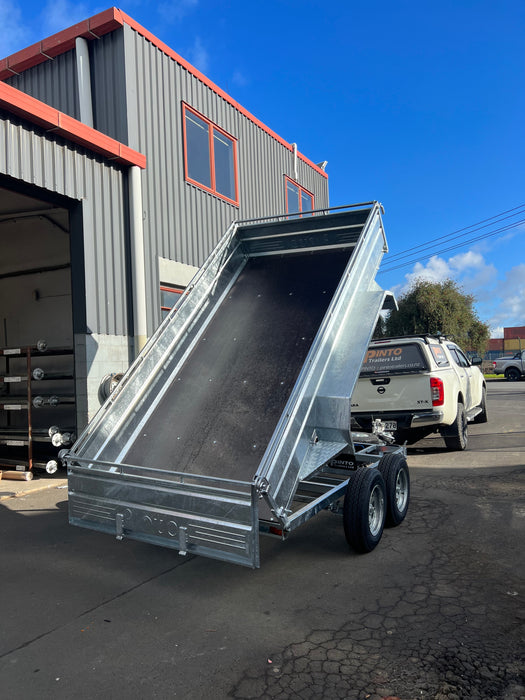

- 2 way opening tailgate for ease of dumping
- 10 Year Warranty
- Manufactured in New Zealand
- Delivery New Zealand Wide Can Be Arranged
